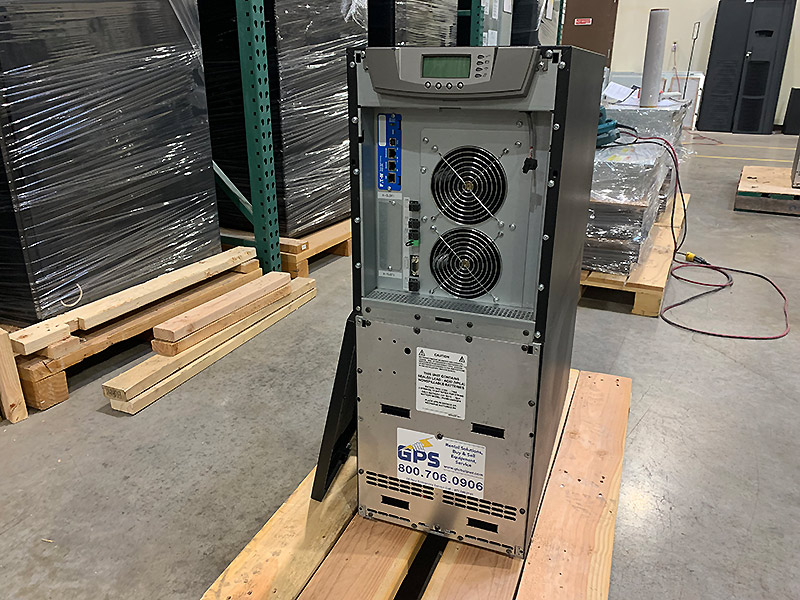

Eaton 9155 Uninterruptible Power Supply System 15KVA

  • 1
  • 2
  • 3

Brand Name : Eaton

Model Number : ups system

Certification : CE, RoHS

Place of Origin : Hubei, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 10000 Pieces/Month

Delivery Time : within 10 days of payment

Packaging Details : carton & PVC packaging

Power Rating : 8-15 KVA

Frequency : 50/60Hz

Product Series : Powerware

Efficiency : 90% typical

Configuration : Tower

Voltage : 220-230-240V

Contact Now

Uninterruptible Power Supply System 15KVA Eaton 9155 UPS Power System



Specifications



POWER
Ratings (kVA/Watts) 8,10,12 and 15 kVA at 0.9 power factor
Topology True double-conversion online UPS
ELECTRICAL INPUT
Nominal Input Voltage 200V-240V with neutral or with optional transformer
Input Voltage Range -15%, +10% from nominal at 100% load without depleting battery
Operating Frequency 50/60 Hz (45 to 65Hz)
Input Power Factor P.F>0.99 typical, >0.96 frequency converter
Input Current Distortion 5% THD
ELECTRICAL OUTPUT
Nominal Output Voltage 100/200, 110/220, 120/240 Vac 180° phase displacement; 120/208, 127/220 Vac 120° phase displacement
Output Voltage Regulation ±1% Static; ±5% dynamic at 100% resistive load change,<1 ms response time
Efficiency 90% typical
BATTERY
Battery Type 9Ah, sealed, lead-acid, maintenance-free
Battery Runtime See Battery Runtime Chart
Battery Replacement Field-replaceable
Charger Default is 3.4A per battery string. Charger current is configurable from 0.5A to 25A per string with an overall maximum of 34A (limited by input current)
Start-On-Battery Start-On-Battery Allows start of UPS without utility input
GENERAL
Diagnostics Full system self-test at startup
UPS Bypass Automatic on overload or UPS failure
Parallel for Redundancy and Capacity Yes, using Powerware Hot Sync technology
Dimensions and Weights See Model Selection Table
Overload 150% for 5 sec / 125% for 1 min (online), (Normal Operation) 110% for 10 min
CERTIFICATIONS
Safety Certifications NOM-0190SCFI-1993, UL 1778, CSA C22.2, No. 107.3; EN 5502 Class A (CISPR22 Class A) and IEC 60950; IEC 62040-1-1
EMC Compliance IEC 62040-2, FCC Part 15, ICES-003, VCCI
Quality ISO 9001: 2000 and ISO 14001:1996
Markings UL, cUL, CSA, CE and NOM-NYCE



Power Rating 8-15 KVA
Voltage 220-230-240V
Frequency 50/60Hz
Configuration Tower
Product Series Powerware



Industries & Applications



A powerful solution for medium-sized banking centers, clinics & hospitals, financial institutions, and other users who require a complete industrial UPS system or commercial UPS system, the EATON 9155 UPS is also rugged & robust enough for demanding marine applications. Perfect for uses including but not limited to:

Medium-sized data centers, IT systems, or telecom closets

Network switching & processing equipment

PLC controls

High-quality power backup system for AS-400 systems



Features & Benefits



Eaton 9155 UPS Sizes: 8KVA, 10KVA 12KVA and 15KVA

Extraordinary power density delivers a complete emergency power supply system in less space thanks to compact design, internal batteries, and integrated static and manual bypass switches

Optimal 0.90 output power factor reduces need to oversize your emergency power supply system

Enhanced compatibility with upstream equipment is achieved with active PFC, an extremely efficient 0.99 input power
factor, and reduced ITHD

Proprietary Advanced Battery Management 3-stage charging system enhances backup reliability of your emergency power supply system by significantly extending battery lifetime.

Proprietary HotSync technology enables paralleling up to four 9155 UPSs for additional capacity or redundancy in your emergency power supply system

Ergonomically-designed and intuitive LCD interface and a wide range of connectivity options enhance the operator efficiency & safety of your emergency power supply system

High system efficiency and power density make the EATON 9155 UPS a sustainable solution to your emergency power supply system requirements
